A professional ebike motor test isolates motor and electrical faults through structured bench diagnostics, not symptom guessing. The workflow pairs an offline-capable diagnostic device with desktop software to capture fault codes, verify motor phases, sensors, and wiring, then produces a customer-ready report. The rest of this guide walks through that exact shop process, step by step.
TL;DR:
- Static resistance and wiring inspections are essential checks that can identify open windings and poor connections, but they may not detect intermittent faults only evident under load.
- Fault codes serve as clues rather than definitive diagnoses; analyzing logged data around these codes reveals the actual failed component, such as wiring, sensors, or the controller.
- Post-repair testing must replicate the initial diagnostic steps to confirm the fault has been fully resolved, with readings matching pre-service values within normal ranges.
- Using an offline-capable diagnostic device like EVCore D1 and EVCore Studio streamlines testing, report generation, and maintenance history tracking without internet dependency during tests.
- Proper calibration of diagnostic tools and detailed documentation, including photos and timestamped test logs, are critical for warranty claims and safety compliance, especially for electrical safety standards like UL 2849.
Table of Contents
- Preparation and safety checklist before testing an e-bike motor
- Step-by-step bench diagnostic procedure for motor, sensors, and wiring
- Reading fault codes and deciding the next repair action
- Building the diagnostic report customers and manufacturers will accept
- How to calibrate diagnostic instruments before testing
- Common fault patterns technicians find during motor testing
- Storing diagnostic data for maintenance history
- Confirming the repair with post-repair motor testing
- What systematic diagnostics change on the shop floor
- Running this workflow with EVCore Studio and EVCore D1
- Standards and lab testing references for electrical safety
- FAQ
Preparation and safety checklist before testing an e-bike motor
Bench testing an e-bike motor without a controlled setup invites both injury and bad data. Before any harness gets connected, the vehicle needs to be physically isolated and the technician protected.
Start with personal protective equipment: insulated gloves and eye protection at minimum, since motor phases can carry meaningful current even at low RPM. Disconnect the main battery connector and apply lockout/tagout on the pack before touching motor leads or controller connectors. Record the pre-service condition, including any customer-reported symptoms, odometer or usage data, and visible damage, and get written consent for bench testing before disassembly begins.
- Confirm battery state of charge is within a safe test range, typically 30 to 80 percent, to avoid triggering false undervoltage or overcurrent faults.
- Verify all connectors are dry and free of corrosion before applying diagnostic power.
- Use device interlocks that prevent live testing until isolation is confirmed.
- Keep the harness routing away from moving drivetrain components during spin tests.
An offline-capable diagnostic device removes a layer of risk here: there is no dependency on shop Wi-Fi or a cloud session mid-test, so a dropped connection never leaves a motor half-energized while software reconnects. It also cuts setup time since the technician is not waiting on a network handshake before the first reading.
Pro Tip: Photograph connector orientation before disconnecting anything. It saves reassembly guesswork later and gives you a before-state image for the customer report.

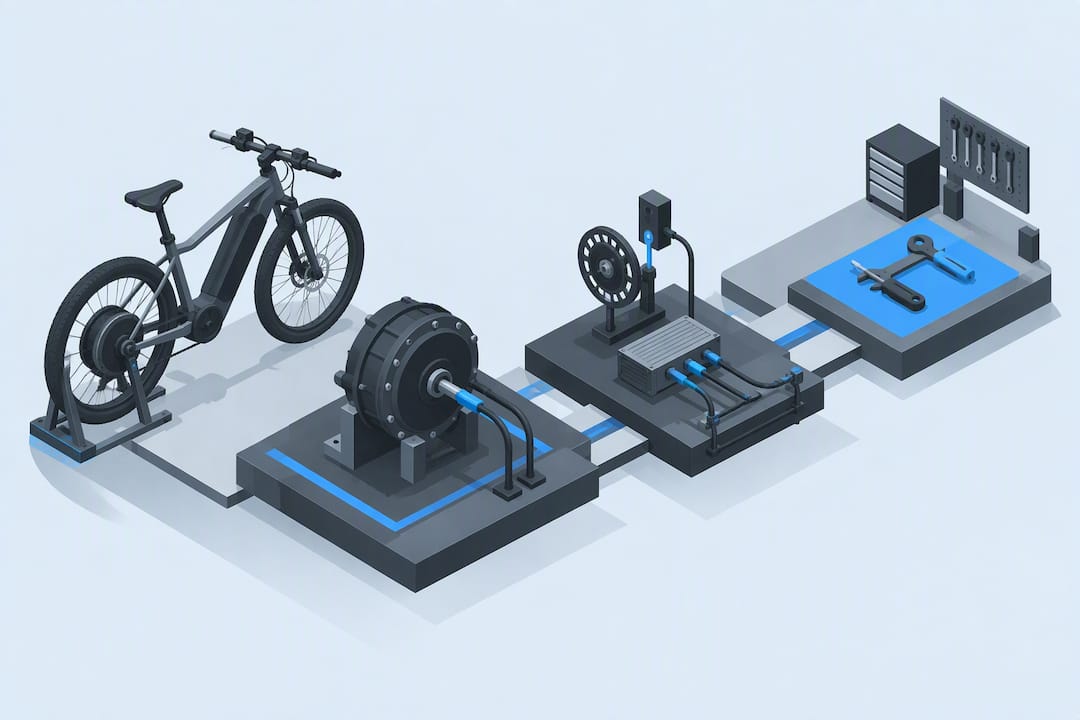

Step-by-step bench diagnostic procedure for motor, sensors, and wiring
Once the vehicle is isolated and prepped, the actual test sequence follows a fixed order so results are repeatable across technicians and across visits.
- Connect the diagnostic harness to the motor and controller connectors, then select the correct vehicle profile in the software so expected value ranges match the hardware.
- Confirm isolation status and battery state of charge before enabling any live signal.
- Run static checks: measure motor-phase resistances across all three phase pairs, check Hall sensor continuity and supply voltage, and inspect wiring insulation for breaks or chafing against expected resistance ranges for that motor family.
- Run dynamic checks: a controlled low-speed spin test while logging phase current and voltage, a command-response test on throttle and brake cut-off inputs, and capturing any fault codes the controller reports during the spin.
- Timestamp every reading and export the fault-code dump along with raw current and voltage traces, keeping a copy for warranty submission or supplier escalation.
- After any repair, repeat the full sequence to confirm the original fault code no longer appears and that phase and sensor readings sit inside normal range.
The static-to-dynamic order matters because a motor can pass every static resistance check and still fault under load, so skipping the spin test hides intermittent problems. Static checks catch open windings and dead sensors; dynamic checks catch timing and thermal issues that only appear once current is flowing.
Diagnostic reports that log fault-code history and test values alongside pre- and post-service readings give both the shop and the customer a documented basis for warranty claims, since a timestamped log of exactly what was tested and when reduces disputes over whether a fault existed before service. That documentation matters as much as the test itself when a manufacturer questions a warranty submission.
Keep raw traces, not just pass or fail summaries. A supplier or manufacturer reviewing a warranty claim will often want the actual current waveform or the exact fault-code sequence, and a summary alone rarely satisfies that request.
Reading fault codes and deciding the next repair action
A fault code by itself is a pointer, not a diagnosis. The value is in what the logged data around that code tells you about which component actually failed.
Sensor faults typically show up as an out-of-range or flatlined signal on one channel while the others behave normally, which points at a Hall sensor or a speed/torque sensor rather than the motor windings themselves. Wiring faults tend to show intermittent signal dropout that correlates with movement or vibration during the spin test, since a chafed wire or loose connector often only opens under mechanical stress. Controller faults usually show correct sensor input paired with an incorrect or absent command response, meaning the controller received good data but failed to act on it.
- Confirm wiring first: it is the cheapest fix and the most common root cause behind intermittent codes.
- If wiring checks clean, move to a bench rebuild or replacement of the faulty motor component.
- If motor and sensors check clean but response is still wrong, the controller is the likely failure point.
- Escalate to the manufacturer when the same code recurs after a verified repair, since that pattern often indicates a design or batch issue rather than a workshop fault.
Pro Tip: Log the frequency of a specific fault code across multiple visits for the same vehicle. A recurring code after a confirmed repair is strong evidence for a manufacturer warranty claim rather than a shop callback.
Some faults fall outside what a repair bench should attempt to resolve. When a test reveals repeated overcurrent, overheating, or insulation failure that suggests a broader electrical safety issue, that is a signal to recommend formal lab testing rather than a shop-level repair, a point covered further in the standards section below.
Building the diagnostic report customers and manufacturers will accept
A test sequence is only as useful as the report that comes out of it. A report needs to stand on its own for a customer who was not in the shop and for a manufacturer reviewing a warranty claim months later.
- A timestamped fault-code table showing what was captured and when.
- A list of test steps performed, in order, so the sequence is reproducible.
- Before and after readings for the components that were tested or replaced.
- Photos of the failed component and the completed repair.
- A plain-language recommendation: repair, replace, or escalate.
Offline-generated reports from the diagnostic device give the technician a document to walk the customer through immediately, without needing a follow-up email once the shop is back online. That same document doubles as the paperwork a manufacturer expects for a warranty submission.
| Report element | Purpose |
|---|---|
| Fault-code table | Shows exactly what the controller reported and when |
| Test sequence log | Confirms the diagnostic steps were followed in order |
| Before/after readings | Documents component condition pre- and post-repair |
| Photos | Provides visual evidence for the customer and manufacturer |
| Recommendation | States the next action in plain language |
A short work order template covering vehicle ID, fault summary, parts used, and technician sign-off keeps parts escalation requests consistent across a multi-bay shop.
How to calibrate diagnostic instruments before testing
Calibration drift is invisible until it produces a false fault code, so it needs to happen on a schedule, not just when a reading looks wrong.
Before the first test of the day, verify the diagnostic device against a known reference: a resistor of known value for phase resistance checks, and a known-good sensor or simulator signal for Hall sensor voltage checks. Confirm the software’s expected-range profile matches the motor family being tested, since a mismatched profile will flag normal readings as faults. Check cable and connector continuity on the harness itself, since a worn test lead introduces resistance that reads as a component fault on the vehicle.
Log the calibration check itself, including the reference value used and the reading obtained, as part of the shop’s instrument maintenance record. This matters for two reasons: it catches instrument drift before it produces a bad diagnosis, and it gives the shop a defensible record if a customer or manufacturer questions a test result. Recalibrate on a fixed interval rather than only after a suspicious reading, since drift is often gradual enough that no single test looks obviously wrong.
Common fault patterns technicians find during motor testing
A few patterns show up often enough that recognizing them speeds up diagnosis considerably. An open phase winding shows as a resistance reading far outside the expected range on one phase pair while the other two read normally, and it almost always means a motor rebuild or replacement rather than a wiring fix.
A dead or intermittent Hall sensor shows as a flatlined or erratic signal on one channel during the spin test while the motor still turns, since Hall sensors report position rather than drive the motor directly. Identical display error codes can point to different root causes, so the reliable way to isolate the actual failed part is matching the logged Hall sensor waveform timing against the controller’s command timing rather than trusting the code alone.
Intermittent faults that appear only under load but disappear on static checks are the hardest pattern to chase. When a motor passes every static resistance and continuity check but faults during the spin test, the likely causes are an intermittent connector contact, thermal expansion in the rotor or stator changing clearances slightly, or the controller’s own thermal-protection behavior kicking in. Documenting the exact conditions that reproduce the fault, including ambient temperature, load level, and duration before failure, turns an intermittent problem into a repeatable one and saves a second diagnostic visit.
Storing diagnostic data for maintenance history
A single test result is useful once. A stored history of tests on the same vehicle is useful every time it comes back.
Store each report against the vehicle’s identifier rather than just the customer account, so a technician pulling up a returning bike sees every prior fault code, repair, and reading regardless of who serviced it last. Keep raw traces alongside summary reports, since a manufacturer or supplier reviewing a pattern of failures across multiple units will often ask for the underlying data, not just the pass or fail conclusion. Back up the diagnostic database on a regular schedule separate from the shop’s general files, since this data often becomes the evidence base for warranty disputes months after the original visit.
Consistent naming and dating across reports also makes it possible to spot a recurring code across visits, which is the strongest evidence a shop can present when escalating a component to the manufacturer as a design issue rather than a one-off failure.
Confirming the repair with post-repair motor testing
A repair is not finished when the part goes back together. It is finished when the same diagnostic sequence that found the fault comes back clean.
Reassemble the motor and connectors following the pre-service photos taken during teardown, then run the full static and dynamic sequence again rather than a shortened spot check. Confirm that the specific fault code that triggered the repair is absent from the new log, and that phase resistances, Hall sensor signals, and command-response timing all sit inside the expected range for that vehicle profile. Compare the new readings directly against the before-repair values stored in the vehicle’s history rather than relying on memory or a general sense that the bike “feels” fixed.
Only close the work order once this repeat test is logged and attached to the report. A shop that skips this step and relies on a test ride risks missing an intermittent fault that only shows up under specific load or temperature conditions, the same category of problem that caused the original diagnostic visit.
What systematic diagnostics change on the shop floor
Shops that move from symptom-based guessing to code-driven diagnostics tend to cut diagnostic cycle time and reduce unnecessary part purchases, since the technician is chasing a specific logged value instead of swapping components to see what helps. Customers also accept recommended repairs faster when the shop hands them a report with actual readings instead of a verbal explanation, because the documentation answers the “why” before they have to ask.
— Colton
Running this workflow with EVCore Studio and EVCore D1
Everything in this workflow, from static phase checks to fault-code capture to the final customer report, is built around the same category of tool: an offline-capable diagnostic device paired with desktop software. That is exactly what EVCore is built to do.
The EVCore D1 runs real-time motor, sensor, and wiring tests directly from the device, without needing a separate computer or internet connection mid-test, and EVCore Studio turns those readings into the timestamped, customer-ready reports this guide describes. The software also stores work orders and vehicle history locally, so the maintenance record described above lives in one place.
- Real-time motor, sensor, and wiring tests with explicit fault codes, run without a network connection.
- Customer-ready reports generated directly from test data, with work order and job history tracking.
- A 6-month license option is available for those evaluating the workflow or covering a seasonal spike in repair volume.
Shops ready to try the exact sequence in this article can start with the EVCore Studio 6-month license or browse the full EVCore lineup.
Standards and lab testing references for electrical safety
UL 2849 covers temperature, vibration, and shock testing relevant to e-bike electrical safety, and certification requires accredited labs, including BMS and motor circuit assessments beyond typical shop-level testing.
FAQ
What does a professional ebike motor test actually check?
It checks motor phase resistances, Hall sensor and speed or torque sensor signals, wiring insulation, throttle and brake cut-off inputs, and controller command-response behavior. The goal is to isolate the specific failed component through fault codes rather than replacing parts based on symptoms alone.
How is a hall sensor test different from checking motor phase resistance?
A Hall sensor test checks the position-reporting signal each sensor sends to the controller, usually by monitoring signal continuity and voltage during a spin test. Phase resistance checks measure the motor windings themselves with power isolated, so the two tests catch different categories of fault.
When should a repair shop escalate to a certified testing lab instead of bench testing?
Escalation makes sense when a test reveals repeated overcurrent, overheating, or insulation failure that points at a broader electrical safety issue rather than a single component fault. Certification to UL 2849 requires accredited lab facilities, which sits outside what a bench diagnostic setup is designed to verify.
What should a diagnostic report include for a customer or a warranty claim?
A complete report includes a timestamped fault-code table, the test steps performed, before and after readings, photos of the affected component, and a plain-language repair recommendation. This documentation is what supports a warranty submission and reduces disputes over pre-existing conditions.
Does EVCore Studio require an internet connection to run tests?
No, the EVCore D1 and EVCore Studio are built to run motor, sensor, and wiring tests offline, without needing a separate computer or network connection during the test itself. Reports and diagnostic codes are generated directly from the captured data once the test sequence completes.
